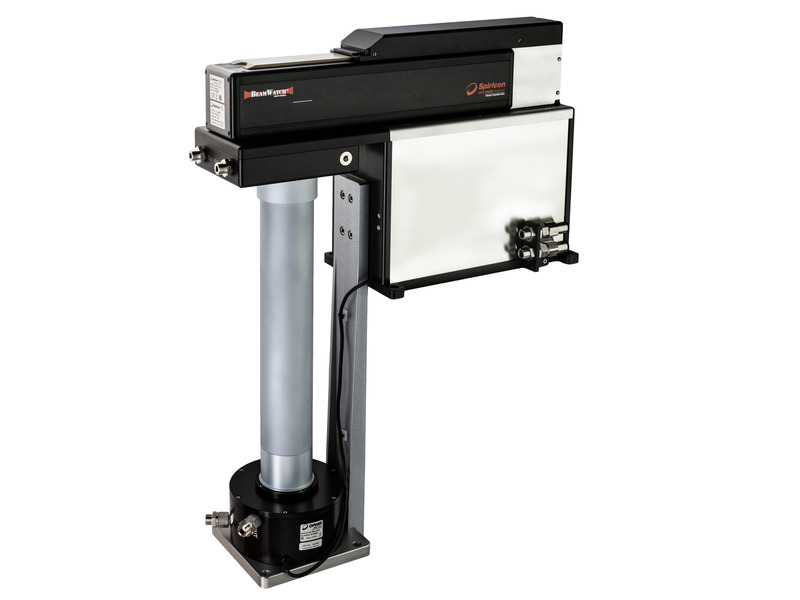

BeamWatch Integrated Non-Contact Beam Profiler System, 500 mm, 980-1080 nm, CC-Link

  • Spectral Range
    980-1080 nm
  • Power Range
    500-9999 W
  • Maximum Beam Diameter at Entrance/Exit
    12.5 mm
  • Focus to Power Meter Distance
    500 mm
  • Power Meter Calibration
    NIST traceable ±3%
  • Beam Profiling
    ISO 11146 Measurements
  • Communication
    CC-Link
  • CE Compliance
    Yes
  • UKCA Compliance
    Yes
  • China RoHS Compliance
    Yes
