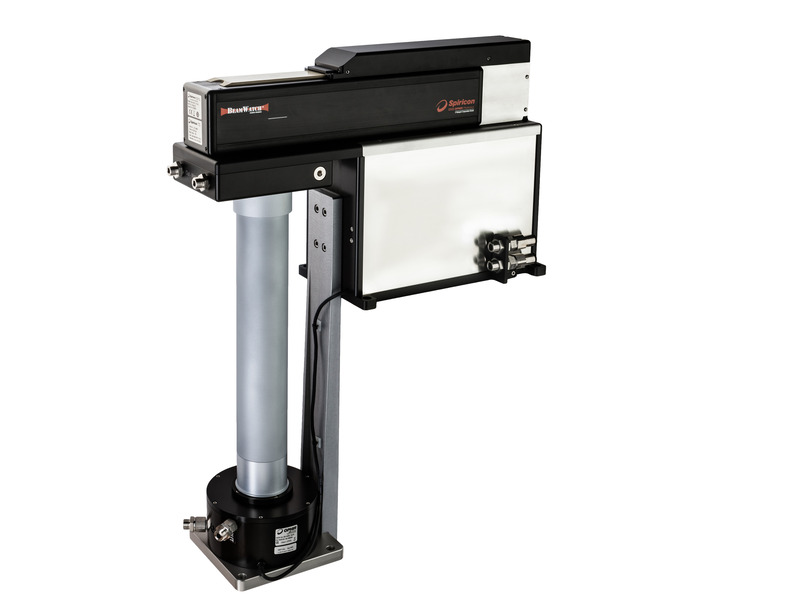

BeamWatch Integrated Non-Contact Beam Profiler System, 500 mm, 980-1080 nm, EtherNet/IP
BW-Integrated-500-NIR-155-EtherNet/IP
Model: SP90529
Product Series Overview
BeamWatch® Integrated 500 Caustic and Power Laser Measurement SystemBeamWatch Integrated Non-Contact Beam Profiler System, 500 mm, 980-1080 nm, EtherNet/IP
The BW-Integrated-500-NIR-155-EtherNet/IP (P/N SP90529) is a fully automated laser measurement system designed to integrate the measurement of critical laser beam parameters on industrial production lines using GigE or EtherNet/IP communication. Based on BeamWatch’s patented, non-contact profiling principle, BeamWatch Integrated offers contactless and simultaneous measurement of all critical laser beam parameters in real time, while its built-in power meter delivers absolute power readings.
Specifications
- Spectral Range980-1080 nm
- Power Range500-9999 W
- Maximum Beam Diameter at Entrance/Exit12.5 mm
- Focus to Power Meter Distance500 mm
- Power Meter CalibrationNIST traceable ±3%
- Beam ProfilingISO 11146 Measurements
- CommunicationEtherNet/IP
- CE ComplianceYes
- UKCA ComplianceYes
- China RoHS ComplianceYes
Resources & Downloads
Data Sheets
BeamWatch® Integrated 500 Datasheet(269.9 kB, PDF)
