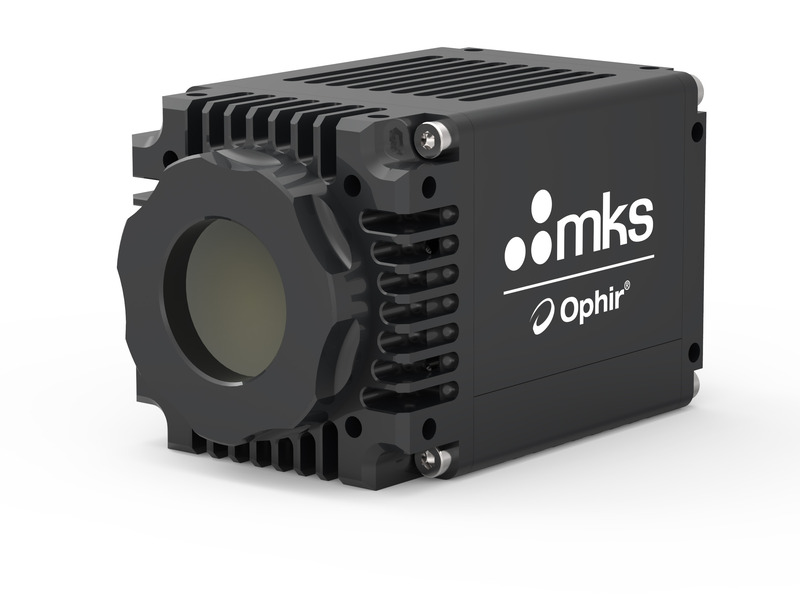

SP1203 Laser Beam Profiler, 640x512 px, 60 Hz, 900-1700 nm, GigE, BeamGage Pro


BGP-GigE-SP1203
Model: SP90524
Product Series Overview
SP1203 GigE 640x512 CCD 900-1700 nm Laser Beam ProfilerSP1203 Laser Beam Profiler, 640x512 px, 60 Hz, 900-1700 nm, GigE, BeamGage Pro
The BGP-GigE-SP1203 camera based laser beam profiler (P/N SP90385) accurately captures and analyzes wavelengths from 900 to 1700 nm. It features a high resolution VGA sensor, compact design, power over Ethernet, stabilized sensor cooling with no fan, and automatic NUC file correction. This InGaAs camera-based beam profiling system is ideal for eye-safe military, telecom, and medical laser applications. Requires SP1203 KIt (P/N SP90536) to upgrade to BeamGage Professional software.
Please Note: to use this camera, SP1203 Kit P/N
Specifications
- Spectral Range900-1700 nm
- Beam Size150 µm - 7.4 mm
- Sensor TypeInGaAs
- Compatible Light SourcesCW, Pulsed
- Active Area9.6 x 7.6 mm
- 17.5 mm
- Elements640 x 512
- Effective Pixel Pitch15 μm
- Dynamic Range68 dB
- Full Resolution Frame Rate60 fps
- Saturation Intensity12.6 μW/cm2 @ 1064 nm
8.9 μW/cm2 @ 1550 nm - SoftwareNot included
- CE ComplianceYes
- UKCA ComplianceYes
- China RoHS ComplianceYes
- CommunicationGigE
- Spectral Range900-1700 nm
- Beam Size150 µm - 7.4 mm
- Sensor TypeInGaAs
- Compatible Light SourcesCW, Pulsed
- Active Area9.6 x 7.6 mm
- 17.5 mm
- Elements640 x 512
- Effective Pixel Pitch15 μm
- Dynamic Range68 dB
- Full Resolution Frame Rate60 fps
- Saturation Intensity12.6 μW/cm2 @ 1064 nm
8.9 μW/cm2 @ 1550 nm - SoftwareNot included
- CE ComplianceYes
- UKCA ComplianceYes
- China RoHS ComplianceYes
- CommunicationGigE
Resources & Downloads
3D Product Models
Data Sheets
GigE / USB InGaAs NIR Cameras Datasheet (380.1 kB, PDF) BeamGage Datasheet (647.6 kB, PDF)
Drawings & CAD
SP1201 SP1203 Drawing(372.7 kB, PDF)
