BeamWatch Integrated Non-Contact Beam Profiler System, 150-175 mm, 980-1080 nm, ProfiNet

BeamWatch® Integrated 150 Caustic and Power Laser Measurement System

BeamWatch Integrated Non-Contact Beam Profiler System, 150-175 mm, 980-1080 nm, ProfiNet

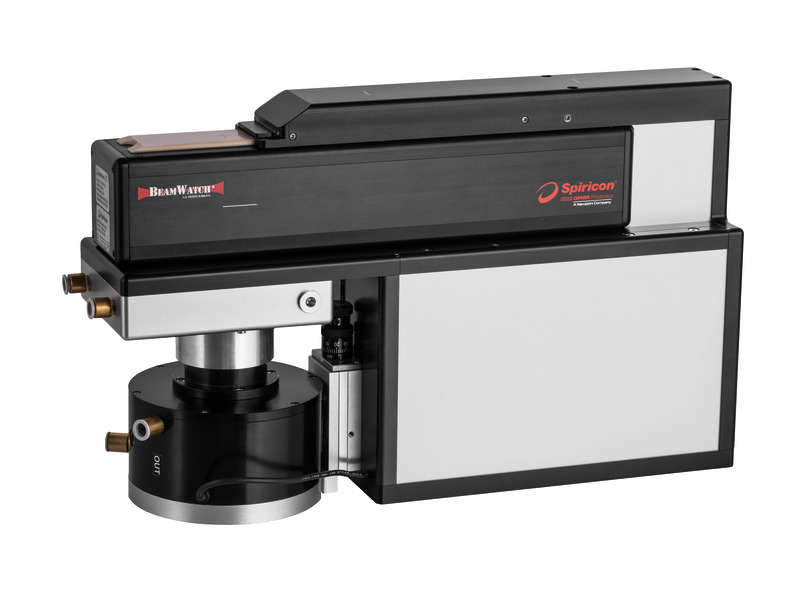

The BW-Integrated-150-NIR-155-ProfiNet (P/N SP90512) is a fully automated laser measurement system designed to integrate the measurement of critical laser beam parameters on industrial production lines using GigE or PROFINET communication. Based on BeamWatch’s patented, non-contact profiling principle, BeamWatch Integrated offers contactless and simultaneous measurement of all critical laser beam parameters in real time, while its built-in power meter delivers absolute power readings.

Specifications

Technical Specs

Spectral Range
980-1080 nm
Minimum Spot Size
155µm
Focus Spot Size
155µm to 2.75mm
Power Range
500-9999 W
Maximum Beam Diameter at Entrance/Exit
12.5 mm
Focus to Power Meter Distance
150-175 mm
Power Meter Calibration
NIST traceable ±3%

Beam Profiling
ISO 11146 Measurements
Communication
ProfiNet
CE Compliance
Yes
UKCA Compliance
Yes
China RoHS Compliance
Yes

Spectral Range
980-1080 nm
Minimum Spot Size
155µm
Focus Spot Size
155µm to 2.75mm
Power Range
500-9999 W
Maximum Beam Diameter at Entrance/Exit
12.5 mm
Focus to Power Meter Distance
150-175 mm
Power Meter Calibration
NIST traceable ±3%

Beam Profiling
ISO 11146 Measurements
Communication
ProfiNet
CE Compliance
Yes
UKCA Compliance
Yes
China RoHS Compliance
Yes

Resources & Downloads

3D Product Models

Download CAD Files

Drawings & CAD

BW Integrated Drawing(620.9 kB, PDF)
BeamWatch Integrated 150 Drawing(457.9 kB, PDF)
