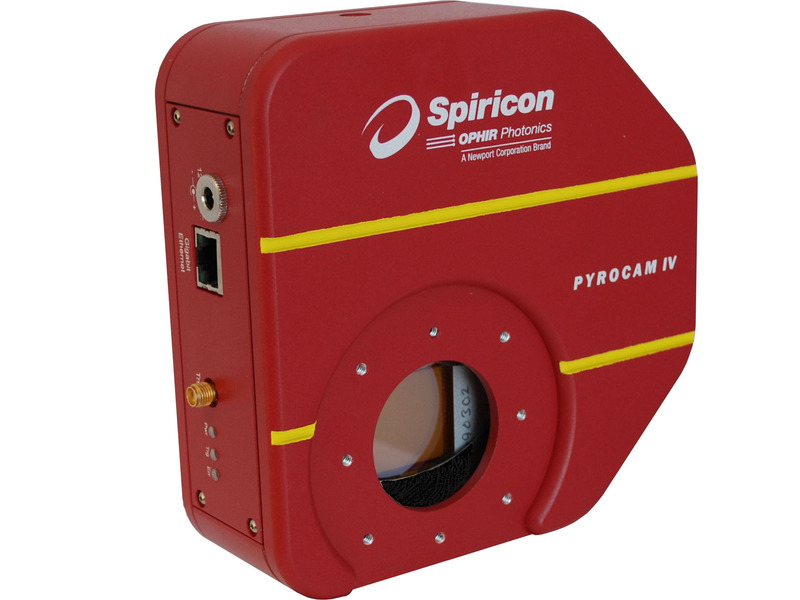

Pyrocam IV Laser Beam Profiler, 320x320 Pyroelectric, 100 fps, 13-355 nm/1.06-3000 μm, optimized for 3-5 μm, GigE
PY-IV-C-MIR PRO
Model: SP90414
3 Weeks
Product Series Overview
Pyrocam™ IV GigE 320x320 Pyroelectric Array Laser Beam ProfilerPyrocam IV Laser Beam Profiler, 320x320 Pyroelectric, 100 fps, 13-355 nm/1.06-3000 μm, optimized for 3-5 μm, GigE
The PY-IV-C-MIR PRO Pyrocam camera (P/N SP90414) accurately captures and analyzes wavelengths from 3 to 5 µm with its broadband array. It features a solid state high-resolution array with a wide dynamic range, fast data capture rates, and operates in CW or Pulsed modes which makes it ideal for analysis of NIR, CO2, and THz sources.
Specifications
- Spectral Range13-355 nm, 1.06-3000 µm
- Beam Size1600 µm - 25.4 mm
- Sensor TypePyroelectric Array
- Compatible Light SourcesCW, Pulsed up to 1KHzk
- Active Area25.6 x 25.6 mm
- 19.7 mm
- Elements320 x 320
- Effective Pixel Pitch80 μm
- Dynamic Range60 dB
- Full Resolution Frame Rate100 fps
- Saturation IntensityChopped Mode: 3.0 W/cm2 (25 Hz) and 4.5 W/cm2 (50 Hz)
Pulsed Mode: 15 mJ/cm2 - SoftwareBeamGage Professional
- CE ComplianceYes
- UKCA ComplianceYes
- China RoHS ComplianceYes
- CommunicationGigE
Resources & Downloads
3D Product Models
Data Sheets
Pyroelectric Array Cameras Datasheet(456.3 kB, PDF) BeamGage Datasheet (647.6 kB, PDF)
Manuals
Pyrocam IV User Guide(1.1 MB, PDF)
Drawings & CAD
PyroCam IV Drawing(199.7 kB, PDF)
