Fiber adapter QBH mount L compatible, Ø100 x 134 mm, High Power Sensors

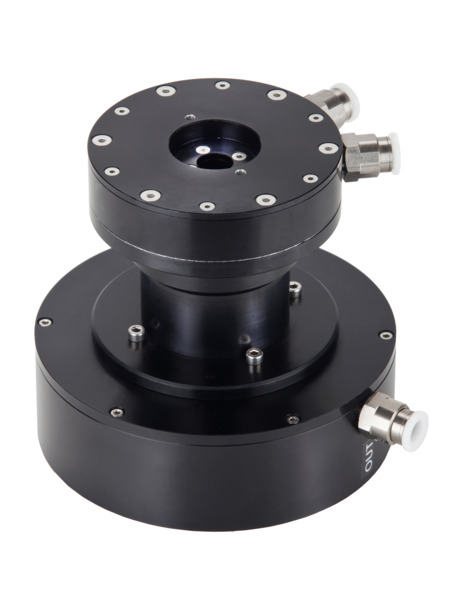

This Fiber adapter QBH mount L compatible (P/N 7Z08456) is used for mounting fibers with QBH termination to high power sensors L1500W-BB-50, L1500W-LP2-50, 5000W-BB-50 and 5000W-LP2-50. It is suitable for beams with small divergence angles.

Note: The accessory doesn’t include the QB bayonet, more details can be found in the user notes.

Specifications

Technical Specs

Type
QBH
Dimensions
Ø100 x 134 mm
Use
L1500W-BB-50, L1500W-LP2-50, 5000W-BB-50, 5000W-LP2-50 sensors

Type
QBH
Dimensions
Ø100 x 134 mm
Use
L1500W-BB-50, L1500W-LP2-50, 5000W-BB-50, 5000W-LP2-50 sensors

Resources & Downloads

Data Sheets

QBH Fiber Adapter for Ophir High Power Sensors Datasheet(308.6 kB, PDF)

Technical Notes

Fiber adapters QBH mount compatible User Notes(496.6 kB, PDF)

3D Product Models

Drawings & CAD

Fiber adapters QBH mount compatible Drawing(2.3 MB, PDF)
Fiber adapters QBH mount compatible with 5000w Drawing(2.2 MB, PDF)
