OEM Thermopile Power Sensor, 10 mW to 4/20 W, Ø12 mm, 0.19-11 µm

0.1 mW to 20 W OEM Thermopile Laser Power Sensor

OEM Thermopile Power Sensor, 10 mW to 4/20 W, Ø12 mm, 0.19-11 µm

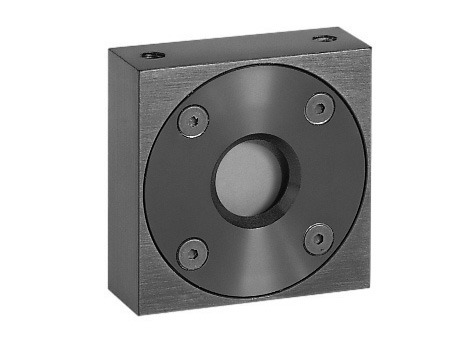

The 20C-BB-12-SH compact OEM thermal power and energy sensor has dimensions of only 38x38x14 mm. It has a 12 mm aperture and can measure laser power from 10 mW to 4 W stand alone and to 20 W when heat sinked. It can measure energy from 6 mJ to 10 J. It has the spectrally flat broadband coating and covers the spectral range from 0.19 to 11 µm.

Offered with a two-year extended warranty

Specifications

Technical Specs

Spectral Range
0.19-11 µm
Maximum Average Power
20 W heat sinked
Maximum Average Power Density
23 kW/cm² at 20 W
Minimum Power
10 mW
Maximum Pulse Energy
10 J
Maximum Energy Density <100 ns
0.3 J/cm²
Maximum Energy Density 2 ms
2 J/cm²
Minimum Pulse Energy
6 mJ

Response Time
0.8 s
Aperture Size
Ø12 mm
Dimensions
38 x 38 x 14 mm (LxWxD)
CE Compliance
Yes
UKCA Compliance
Yes
China RoHS Compliance
Yes

Spectral Range
0.19-11 µm
Maximum Average Power
20 W heat sinked
Maximum Average Power Density
23 kW/cm² at 20 W
Minimum Power
10 mW
Maximum Pulse Energy
10 J
Maximum Energy Density <100 ns
0.3 J/cm²
Maximum Energy Density 2 ms
2 J/cm²
Minimum Pulse Energy
6 mJ

Response Time
0.8 s
Aperture Size
Ø12 mm
Dimensions
38 x 38 x 14 mm (LxWxD)
CE Compliance
Yes
UKCA Compliance
Yes
China RoHS Compliance
Yes

Resources & Downloads

3D Product Models

Download CAD Files

Data Sheets

Standard Customized Solutions (OEM) Thermal Sensors 10mW to 20W Datasheet(776.9 kB, PDF)

Drawings & CAD

20C-SH Drawing(109.7 kB, PDF)
