Radiometric Photodiode Power Sensor, PD300-BB, Silicon, 50 pW to 50 mW, 10x10 mm, 430-1000 nm
PD300-BB-50mW
Model: 7Z02440
Product Series Overview
PD300-BB Radiometric Photodiode Power SensorsRadiometric Photodiode Power Sensor, PD300-BB, Silicon, 50 pW to 50 mW, 10x10 mm, 430-1000 nm

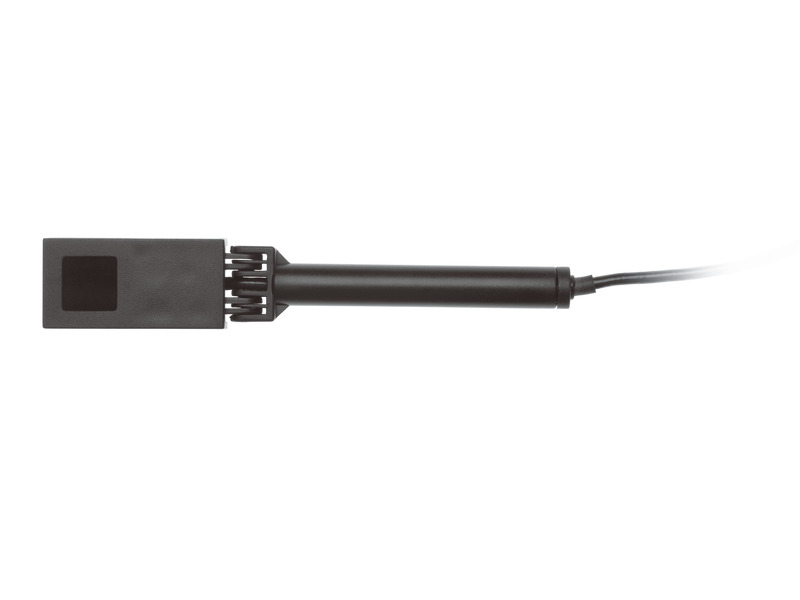

The PD300-BB-50mW radiometric sensor (P/N 7Z02440) has a flat spectral response silicon photodiode sensor for measuring broadband light sources. It covers the spectral range 430 to 1000 nm and has a 10x10 mm aperture with swivel mount and a removable filter. Without filter its optical power measuring range is 50 pW to 4 mW. With filter the power range is 1 nW to 50 mW. The sensor comes with a 1.5 meter cable for connecting to a laser power meter or PC interface.
Resources & Downloads
Data Sheets
Related Products
Customers that purchase the above items also consider the following items. Ophir-Spiricon meters and sensors include a standard manufacturers warranty for one year. Add a one year Extended Warranty to your meter or sensor, which includes one recalibration.
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | 7Z02418PD300-CDRH-7mmCDRH Adapter, Ø7 mm Aperture, Wand Type Power Sensor | |||||
 | 7Z08336PD300-CDRH-3.5mmCDRH Adapter, Ø3.5 mm Aperture, Wand Type Power Sensor | |||||
 | 7Z08221PD300 SC Fiber AdapterFiber Adapter, SC Type | |||||
 | 7Z02210PD300 ST Fiber AdapterFiber Adapter, ST Type | |||||
| 7Z02213PD300 FC Fiber AdapterFiber Adapter, FC Type | |||||
| 7Z02212PD300 SMA Fiber AdapterFiber Adapter, SMA Type | |||||
 | 7E01125A5 m PD300 Sensor CableOptical Sensor Cable, 5 m Length | |||||
| 7E01125B10 m PD300 Sensor CableOptical Sensor Cable, 10 m Length | |||||
| 7E01125C3 m PD300 Sensor CableOptical Sensor Cable, 3 m Length | |||||
 | XWAR-SENSORExtended Warranty for Sensor |
