OEM Thermopile Power Sensor, 60 mW to 5/150 W, 18 mm, 0.19-20 µm
OEM Thermopile Power Sensor, 60 mW to 5/150 W, 18 mm, 0.19-20 µm

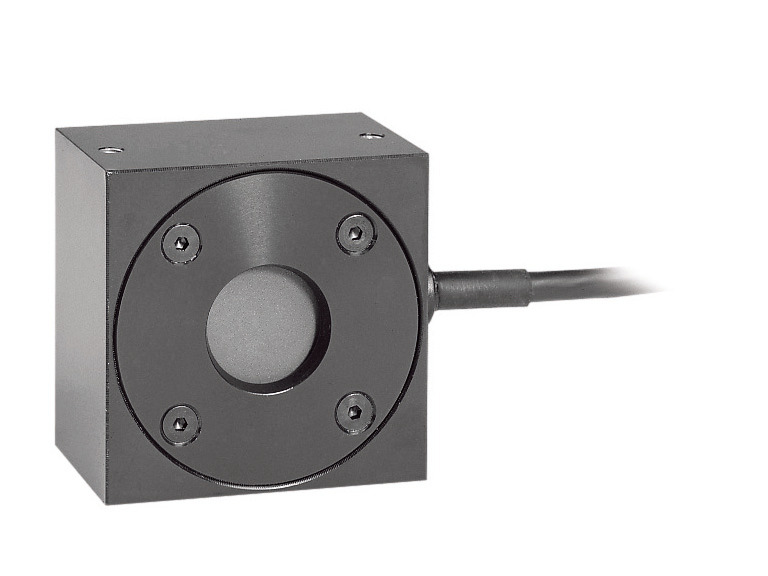

The 150C-SH OEM thermal power and energy sensor with mounting threads has an 18 mm aperture. It can measure laser power from 60 mW to 5W free standing and 60 W when heat sinked. It can measure energy from 20 mJ to 100 J. It has the spectrally flat broadband coating covering the spectral range from 0.19 to 20 µm.
Specifications
Spectral Range
0.19-20 µm
Maximum Average Power
150 W for 1 min free standing
Maximum Average Power Density
20 kW/cm² at 60 W
Minimum Power
60 mW
Maximum Pulse Energy
100 J
Maximum Energy Density <100 ns
0.3 J/cm²
Maximum Energy Density 2 ms
10 J/cm²
Minimum Pulse Energy
20 mJ
Response Time
1.2 s
Aperture Size
Ø18 mm
Dimensions
51 x 51 x 33 mm (LxWxD)
CE Compliance
Yes
UKCA Compliance
Yes
China RoHS Compliance
Yes
Spectral Range
0.19-20 µm
Maximum Average Power
150 W for 1 min free standing
Maximum Average Power Density
20 kW/cm² at 60 W
Minimum Power
60 mW
Maximum Pulse Energy
100 J
Maximum Energy Density <100 ns
0.3 J/cm²
Maximum Energy Density 2 ms
10 J/cm²
Minimum Pulse Energy
20 mJ
Response Time
1.2 s
Aperture Size
Ø18 mm
Dimensions
51 x 51 x 33 mm (LxWxD)
CE Compliance
Yes
UKCA Compliance
Yes
China RoHS Compliance
Yes
