OEM Thermopile Power Sensor, 100 µW to 3 W, Ø9.5 mm, 0.19-11 µm

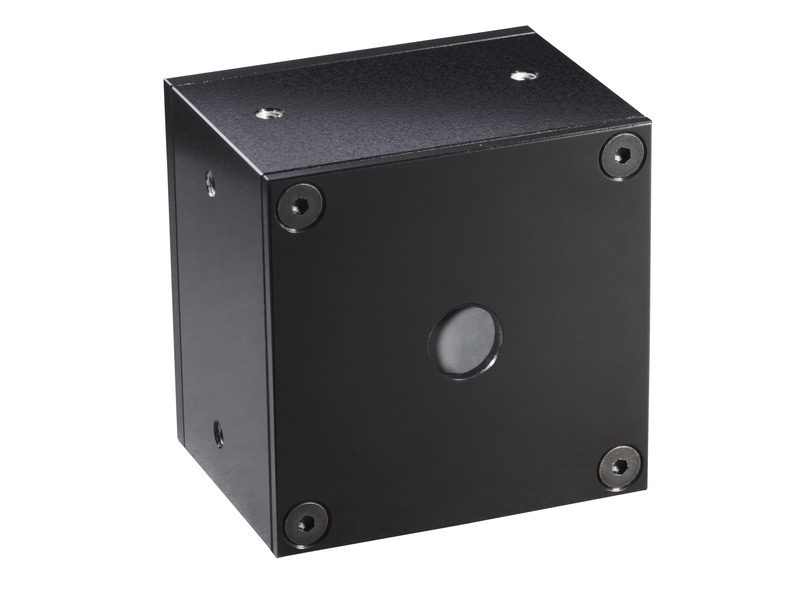

The 3A-UA compact OEM thermal power and energy sensor has a 9.5 mm aperture and can measure very low powers from 100 µW to 3 W. It can measure energy from 20 µJ to 2 J. It has the spectrally flat broadband coating and covers the spectral range from 0.19 to 11 µm. It has analog and RS232 output and a built in amplifier.

Specifications

Technical Specs

Spectral Range
0.19-11 µm
Maximum Average Power
3 W
Maximum Average Power Density
1000 W/cm²
Minimum Power
100 µW
Maximum Pulse Energy
2 J
Maximum Energy Density (7ns)
0.3 J/cm²
Maximum Energy Density (2ms)
2 J/cm²
Minimum Pulse Energy
20 µJ

Response Time
1.8 s
Communication
RS232, Analog
Aperture Size
Ø9.5 mm
Dimensions
50 x 50 x 38 mm (LxWxD)
RoHS Compliance
Yes
China RoHS Compliance
Yes

Spectral Range
0.19-11 µm
Maximum Average Power
3 W
Maximum Average Power Density
1000 W/cm²
Minimum Power
100 µW
Maximum Pulse Energy
2 J
Maximum Energy Density (7ns)
0.3 J/cm²
Maximum Energy Density (2ms)
2 J/cm²
Minimum Pulse Energy
20 µJ

Response Time
1.8 s
Communication
RS232, Analog
Aperture Size
Ø9.5 mm
Dimensions
50 x 50 x 38 mm (LxWxD)
RoHS Compliance
Yes
China RoHS Compliance
Yes
