OEM Thermopile Power Sensor, 10 mW to 4/20 W, Ø12 mm, 0.19-11 µm, USB
OEM Thermopile Power Sensor, 10 mW to 4/20 W, Ø12 mm, 0.19-11 µm, USB

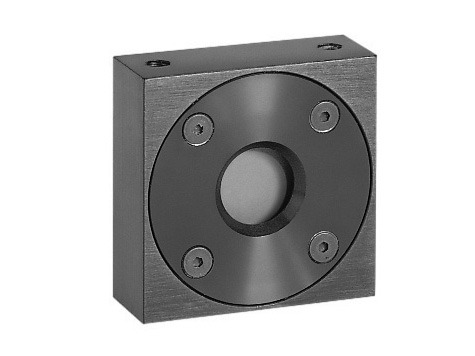

The 20C-UAU compact OEM thermal power and energy sensor has dimensions of only 38x38x14 mm. It has a 12 mm aperture and measures laser power from 10 mW to 4 W stand alone and 20 W when heat sinked. It can measure energy from 6 mJ to 10 J. Its broadband coating covers the spectral range from 0.19 to 11 µm. It has USB output.
Specifications
- Spectral Range0.19-11 µm
- Maximum Average Power20 W heat sinked
- Maximum Average Power Density23 kW/cm² at 20 W
- Minimum Power10 mW
- Maximum Pulse Energy10 J
- Maximum Energy Density (7ns)0.3 J/cm²
- Maximum Energy Density (2ms)2 J/cm²
- Minimum Pulse Energy6 mJ
- Response Time0.8 s
- CommunicationUSB
- Aperture SizeØ12 mm
- Dimensions38 x 38 x 14 mm (LxWxD)
- RoHS ComplianceYes
- China RoHS ComplianceYes
Resources & Downloads
3D Product Models
Data Sheets
Drawings & CAD
20C-UAU 20C-UAE Drawing(110.9 kB, PDF)
