OEM Thermopile Power Sensor, 60 mW to 5/150 W, 18 mm, 0.19-20 µm, Ethernet
OEM Thermopile Power Sensor, 60 mW to 5/150 W, 18 mm, 0.19-20 µm, Ethernet

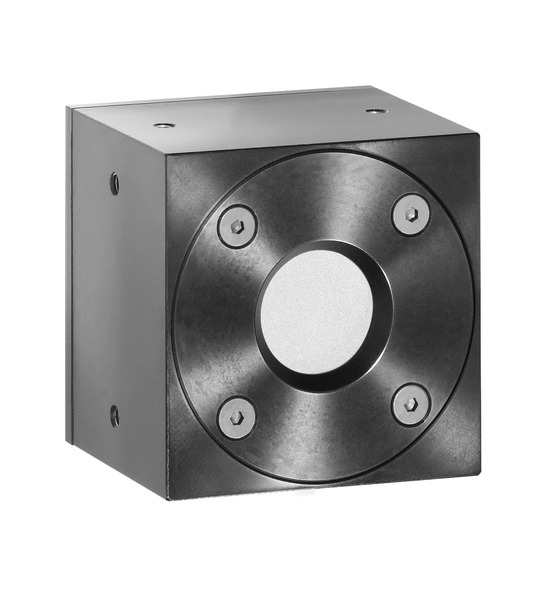

The 150C-UAE OEM thermal power and energy sensor has an 18 mm aperture. It can measure laser power from 60 mW to 5 W free standing and 60 W when heat sinked. It can measure energy from 20 mJ to 100 J. It has the spectrally flat broadband coating covering the spectral range from 0.19 to 20 µm. It has Ethernet output.
Specifications
- Spectral Range0.19-20 µm
- Maximum Average Power150 W for 1 min free standing
- Maximum Average Power Density20 kW/cm² at 60 W
- Minimum Power60 mW
- Maximum Pulse Energy100 J
- Maximum Energy Density <100 ns0.3 J/cm²
- Maximum Energy Density 2 ms10 J/cm²
- Minimum Pulse Energy20 mJ
- Response Time1.2 s
- CommunicationEthernet
- Aperture SizeØ18 mm
- Dimensions50 x 50 x 38 mm (LxWxD)
- RoHS ComplianceYes
- China RoHS ComplianceYes
Resources & Downloads
Drawings & CAD
150C-UAE Drawing(198.4 kB, PDF)
