OEM Thermopile Power Sensor, 0.4-100 W, Ø26 mm, 0.19-20 µm, RS232, Water-Cooled
OEM Thermopile Power Sensor, 0.4-100 W, Ø26 mm, 0.19-20 µm, RS232, Water-Cooled

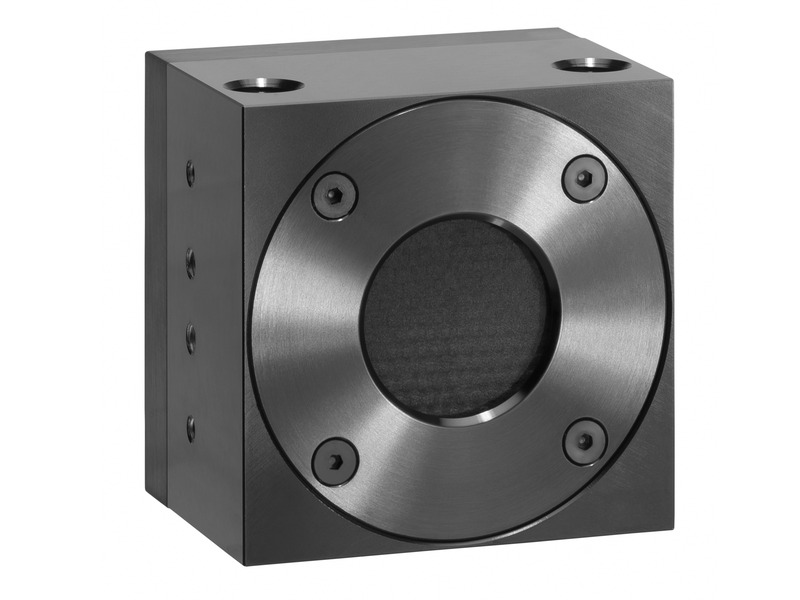

The 100W-AXL-UAF very fast response (~50ms) OEM thermal power sensor has a 26 mm aperture. It can measure laser power from 400 mW to 100 W (water cooled only). It has the spectrally flat broadband coating covering the spectral range from 0.19 to 20 µm. It has analog and RS232 output.
Specifications
Spectral Range
0.19-20 µm
Maximum Average Power
100 W water cooled
Maximum Average Power Density
0.4 kW/cm²
Minimum Power
400 mW
Maximum Energy Density <100 ns
1.5 J/cm²
Maximum Energy Density 2 ms
15 J/cm²
Response Time
50 ms 0-90%
Communication
RS232, Analog
Aperture Size
Ø26 mm
Dimensions
60 x 60 x 45 mm (LxWxD)
RoHS Compliance
Yes
China RoHS Compliance
Yes
