OEM Thermopile Power Sensor, 60 mW to 4/100 W, Ø18 mm, 0.19-20 µm, Ethernet
OEM Thermopile Power Sensor, 60 mW to 4/100 W, Ø18 mm, 0.19-20 µm, Ethernet

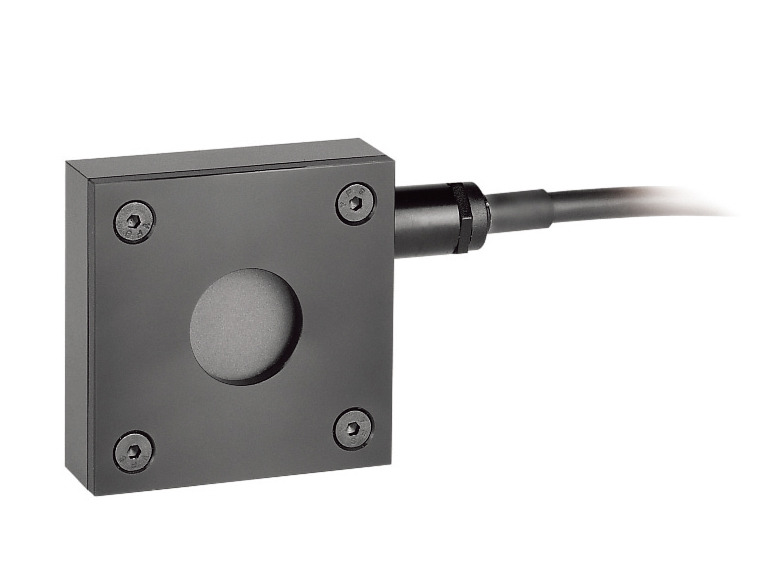

The 100C-UAE thin profile thermal power sensor is 14.5 mm thick with mounting threads and has an 18 mm aperture. It can measure laser power from 60 mW to 4 W free standing and 100 W when heat sinked. It has the spectrally flat broadband coating covering the spectral range from 0.19 to 20 µm. It is connected via cable to a separate circuit board with Ethernet output.
Specifications
Product Name
100C-UAE
Spectral Range
0.19-11 µm
Maximum Average Power
100 W heat sinked
Maximum Average Power Density
14 kW/cm² at 100 W
Minimum Power
60 mW
Maximum Energy Density <100 ns
0.3 J/cm²
Maximum Energy Density 2 ms
10 J/cm²
Response Time
1.2 s
Communication
Ethernet
Aperture Size
Ø18 mm
Dimensions
48 x 48 x 15 mm (LxWxD)
RoHS Compliance
Yes
China RoHS Compliance
Yes
