AMADA Quattro EZ Mount Assembly Instructions
How to install CO2 Laser Optics (lens) at the AMADA Quattro EZ Mount
To Install/Uninstall the Unit
- Assemble the key handle to the plate.

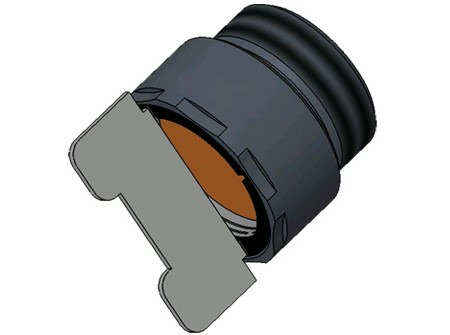

- Attach the assembled key to the mount.
- Install/Uninstall the mount to the cutting head.
To Remove the Lens (for replacement or maintenance)
- Attach the key handle to the inner ring.
- Open the inner ring CW.
- Remove the internal spring.
- Release the lens.
