Overview

StarViewer Feature Highlights

  • Turn your smartphone or tablet into a laser power / energy meter
  • Works a selection of Ophir devices
  • Display measurements as line graph, simulated analog needle, or full screen numeric display with statistics
  • Screen Capture and Share built into the application
  • Measurement settings fully configurable to match your laser measurement needs
  • Great for field technicians that make service calls


StarViewer

StarViewer brings laser power and energy measurement to your smartphone / tablet from our selected devices. It is an intuitive easy-to-learn application. Just install it, connect to your device, and get started immediately.

StarViewer allows you to display the measurement in a time-based line graph, as a needle display, or large numeric display with statistics.

You can also perform a screen capture and share it. Great for field technician's reporting results back to the lab.

StarViewer (Android app) v3.08.3

Overview:
  • Available on Google Play (Android version 7 or higher)
  • Works with Ariel/Juno/Quasar devices
  • StarViewer brings laser power and energy measurement to your Smartphone / Tablet from our Ariel, Juno & Quasar devices
StarViewer

Connectivity:
StarViewer can be used with any standard Ophir Thermopile, Photodiode, or Pyroelectric PE-C sensor
StarViewer can be used with the Juno via your device's USB on-the-go (OTG) port, or with the Quasar and Ariel via Bluetooth. StarViewer

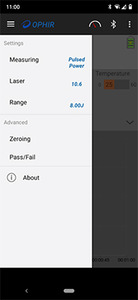

The measurement settings are fully configurable by opening the settings panel at the left of the screen:

StarViewer

For use with the Ariel:
  • Bluetooth: Minimum version 4.0 required, 5.1 recommended
  • Ariel firmware version 1.33 or higher
  • StarViewer supports and leverages Ariel's measurement capabilities to display Continuous Power, Single Pulse Energy, and Pulsed power together with Pulse width, Battery level and temperature
  • Note: The Ariel you are using might have a lower F/W version, please update it to v1.33
For use with the Juno:
  • Smartphone / tablet with an OTG port, capable of providing 100mA or more downstream current
  • Optional - OTG adapter - from USB connector on your device to USB Type A Female Adapter (for Juno cable)
  • Juno firmware version 1.39 or higher
For use with the Quasar:
  • Bluetooth capability
  • Quasar version 1.25 or higher
  • PIN code for Bluetooth pairing is 1234
Note: StarViewer does not support measurement with Pyroelectric sensors with the Quasar

Requirements:
  • Android version 7 or higher
StarViewer
Ophir StarViewer Android App



StarViewer (iOS app) v1.1.4

Overview:
  • Available on Apple's App Store (iOS version 8 or higher)
  • Works with Ariel
  • StarViewer brings laser power and energy measurement to your Smartphone / Tablet from our Ariel device
StarViewer

Connectivity:
StarViewer can be used with Ariel via Bluetooth
StarViewer
The measurement settings are fully configurable by opening the settings panel at the left of the screen:

StarViewer

For use with the Ariel:
  • Bluetooth: Minimum version 4.0 required, 5.1 recommended
  • Ariel firmware version 1.33 or higher
  • StarViewer supports and leverages Ariel's measurement capabilities to display Continuous Power, Single Pulse Energy, and Pulsed power together with Pulse width, Battery level and temperature
  • Note: The Ariel you are using might have a lower F/W version, please update it to v1.33
Requirements:
  • iOS version 8 or higher
StarViewer
Ophir StarViewer iOS App

Specifications


Supported Devices StarViewer (Android app) v3.08.3
USB: Juno
Bluetooth: Quasar, Ariel

StarViewer (iOS app) v1.1.4
Bluetooth: Ariel
Compatibility Android 7.0 or higher
iOS version 8.0 or higher
