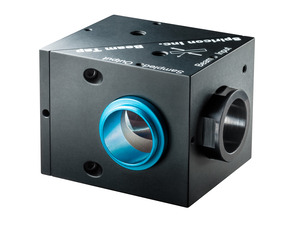

在通过宽带减少偏振光并进行YAG波长激光光束取样的同时实现激光光束衰减。
- Dual surface reflector for equalizing S & P polarization
- The two planes of reflection are orthogonal
- UVFS or BK7 查看所有功能
| 对比 | 型号 | 图纸、CAD和参数 | 库存 | 价格 | ||
|---|---|---|---|---|---|---|
![]() | SP90135BT-IBeam Tap Beam Sampling System, Single Surface, 1 UVFS Cube,400-700 nm | 6 Weeks | ||||
![]() | SP90133BT-IIBeam Tap Beam Sampling System, Dual Surface, 2 UVFS Cubes, 400-700 nm | 4 Weeks | ||||
![]() | SP90173BT-I-YAGBeam Tap Beam Sampling System, Single Surface, 1 BK7 Cube, 1064 nm | 有库存 | ||||
![]() | SP90172BT-II-YAGBeam Tap Beam Sampling System, Dual Surface, 2 BK7 Cubes, 1064 nm | 有库存 |
规格
- 光谱范围400-700 nm (Beam Tap), 1064 nm (Beam Tap YAG)
- 反射1-9%
- 损伤阈值1 MW/cm² CW, 1 MJ/cm² pulsed
- 材料UVFS (Beam Tap), BK7 (Beam Tap YAG)
- 通光孔径Ø20 mm
- 界面C-mount
功能
Equalizing S & P Reflected Polarization
Any arbitrary polarization component can be broken into equivalent S & P components. With complimentary sampling surfaces, any given component gets reflected once as the S polarization, and the second time as the P polarization. Thus using 2 surfaces, the total reflected energy for all polarization components is the sum of the S reflectance and the P reflectance. This causes the sampled beam to have S & P components that are identical to the original beam.
资源
Data Sheets
Beam Tap I & ll Datasheet(247.9 kB, PDF)
Technical Notes
Beam Tap User Notes(586.9 kB, PDF)
