Beam Tap Beam Sampling System, Single Surface, 1 BK7 Cube, 1064 nm
Beam Tap Beam Sampling System, Single Surface, 1 BK7 Cube, 1064 nm

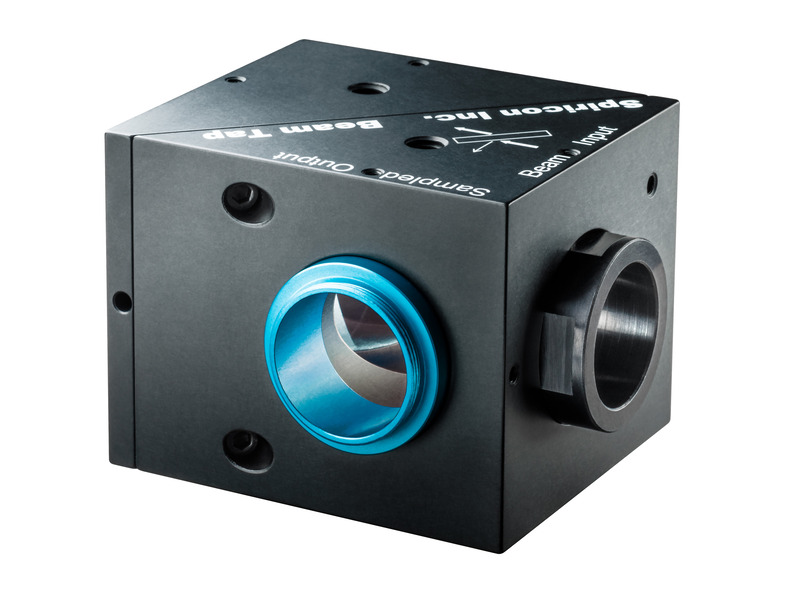

The SP90173 Beam Tap beam sampling system is a single surface laser beam sampler with 1 BK-7 cube for 1064 nm. The rear surface is AR coated to maximize the throughput of the main beam.
规格
- 光谱范围1064 nm
- 反射0.5% Ravg
- 损伤阈值1 MW/cm² CW, 1 MJ/cm² pulsed
- 材料BK7
- 通光孔径Ø20 mm
- 界面C-mount
资源与下载
Drawings & CAD
Beam Tap Drawing(259.9 kB, PDF)
