40 nJ to 2 µJ UV-Silicon for 193 nm Photodiode Energy Sensor
40 nJ to 2 µJ UV-Silicon for 193 nm Photodiode Energy Sensor

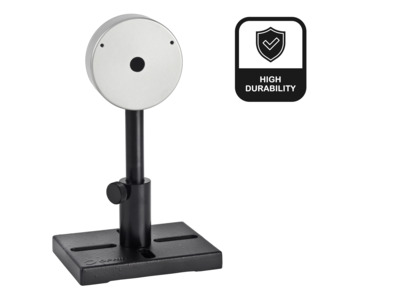

The PD10-C-193 high durability photodiode energy sensor is for low energies with a 10 mm aperture. It can measure energies 40nJ up to 2 µJ. It can operate at repetition rates up to 20 kHz and covers the spectral range from 190 to 400 nm.
- UV-Silicon photodiode with 190 to 400 nm range
- 40 nJ up to 2 µJ energy measurement range
- 10 mm diameter aperture
- Repetition rates up to 20 kHz
- The PD10-C-193 sensor is not under ISO/IEC 17025:2017 accreditation Alle Funktionen anzeigen
Software
PE-C Sensors with StarLab
Support for PE-C \ PD10-C sensors with Vega, Nova II, Juno, Juno+, Juno-RS, EA-1, StarLite and StarBright in StarLab application is now available. Follow step-by-step instructions to upgrade the embedded software in the PE-C \ PD10-C sensor with the StarLab application
When working with other meters and interfaces it is not necessary to update the embedded software of the PE-C \ PD10-C.
Note: PE-C \ PD10-C sensors can't be upgraded via EA-1 interface.
Spezifikationen
- Product NamePD10-C-193
- Aperture SizeØ10 mm
- MaterialUV-Silicon
- Spectral Range190-400 nm
- Minimum Pulse Energy40 nJ
- Maximum Pulse Energy2µJ
- Maximum Frequency20,000 Hz
- Maximum Average Power3 mW at 400 nm
- Maximum CW Power Density50 W/cm²
- Maximum Pulse Width2 μs
- Cable Length1.5 m
- DimensionsØ62 x 22 mm
- CE ComplianceYes
- UKCA ComplianceYes
- China RoHS ComplianceYes
Funktionen
Measure Very Low Energy Laser Pulses
This video will show you how to overcome the challenges of measuring very low energy pulses, even in a noisy environment.
Sensors for Measuring Laser Energy
In this short "Basics" video, we review in general the use of pyro-electric sensors for measuring laser pulse energies.
How to Detect Missing Laser Pulses with a Pyroelectric Sensor
This video will show you how to detect and record any missing pulses in your pulsed laser beam application.
Additional Error with Frequency in a Pyroelectric Sensor
In many laser energy sensor specifications, there is an item called "Additional error with frequency". Learn what that means, and why and when it happens, in this video.
Zubehör
Fiber Connector Adapters
These adapters allow for power measurement of connectorized fiber-optic cables. The sensor may need an additional mounting bracket to connect to these fiber adapters.
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | 7Z08227SC Fiber Connector Adapter, Power and Energy Sensors | Auf Lager | ||||
 | 7Z08226ST Fiber Connector Adapter, Power and Energy Sensors | Auf Lager | ||||
 | 7Z08229FC Fiber Connector Adapter, Power and Energy Sensors | Auf Lager | ||||
 | 1G01236ASMA Fiber Connector Adapter, Power and Energy Sensors | Auf Lager |
Fiber Adapter Mounting Bracket
A mounting bracket is needed to connect most power and energy sensors to a fiber adapter (SC, ST, FC or SMA). This bracket can be used for photodiode energy sensors in the PD10 series.
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | 7Z08275Fiber Adapter Mounting Bracket, PD10 Photodiode Energy Sensors | Auf Lager |
Nova PE-C Adapter
The adapter plugs between the Nova D15 socket and the smart plug of the PE-C and PD-C sensors to allow the Nova to operate with these sensors.
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | 7Z08272Energy Sensor Adapter, Connect PE-C and PD-C to Nova Meter | Auf Lager |
PE-C to PE Size Adapter
The newer PE-C series sensors have a Ø62 mm diameter. The older PE series sensors have a Ø85 mm diameter. This adapter allows using the PE-C type sensors in jigs and setups that were originally designed for PE sensors.
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | 7Z08273PE-C to PE Size Adapter, Ø62 to Ø85 mm |
PE-C Sensor Protective Cover
The PE-C sensor protective cover safeguards the sensor from dust and damage when not in use. Designed for PE-C sensors without a diffuser, this accessory is included with the sensor but is also available for individual purchase.
Fixed extension cables for Energy Sensors
Order a fixed extension cable along with sensor to receive a different cable than the standard 1.5 m cable.
Modular extension cables for Energy Sensors
The extension cables can be ordered separately from the sensors.
Extended Warranty for Sensor
Customers that purchase the above items also consider the following items. Ophir-Spiricon meters and sensors include a standard manufacturers warranty for one year. Add a one year Extended Warranty to your meter or sensor, which includes one recalibration.
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | XWAR-SENSORErweiterte Garantie für Sensoren |
