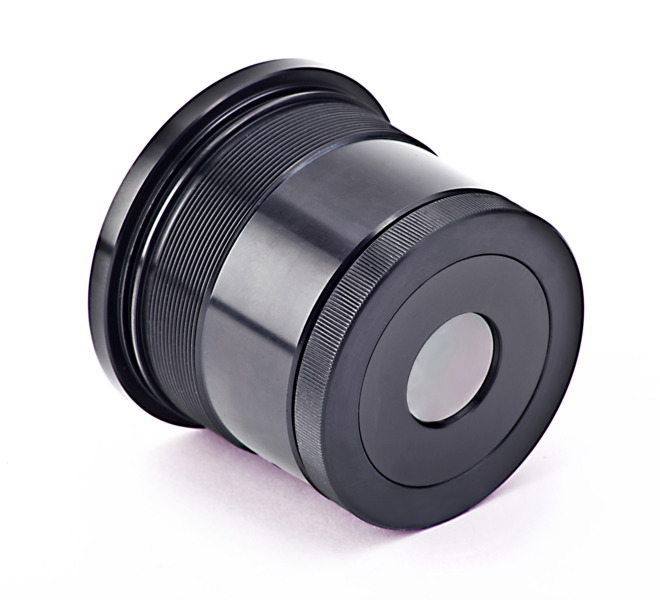

The SupIR 75mm f/1.2 manual focus MWIR imaging lens has a 75 mm focal length with an f-number of 1.2. This single field of view lens (1-FOV) is designed for 1280x1024 SXGA format cooled MWIR cameras.
- Advanced technologies for the highest performance mid-wave focal planes
- High-durability and hard-carbon AR coatings for 3.4-5 μm MWIR wavelengths
- Passive athermalization with the highest imaging performance from -20 to +55°C
- Compatible with 10 μm pixel pitch, 1280x1024 SXGA format MWIR cameras
- Providing superior performance from 400 m out to infinity
- Cost-effective solution for high-resolution thermal imaging and sensing 查看所有功能
HFOV [deg]
| Format | |||||
|---|---|---|---|---|---|
| HFOV | 320x240 | 384x288 | 640x512 | 1280X1024 | |
| 15 µm | 3.7° | 4.4° | 7.3° | ||
| 10 µm | 2.4° | 2.9° | 4.9° | 7.8° | |
| 5 µm | 2.4° | 3.9° | |||
规格
- 型号Single Field of View
- 焦距要求（最大）10 to 99 mm
- 焦距75 mm
- F/#1.2
- 光谱范围3.4-5 µm
- 背向焦点尺寸41.7 mm in air
- 聚焦机制Manual
- 景深400 m to infinity
- 聚焦范围5 m to infinity
- 工作温度范围-20°C to +55°C
- 存储温度范围-40°C to+80°C
- 密封IP 67 front element only
- 波长范围MWIR
功能
High Performance Mid-Wave Focal Plane
Using advanced technologies, top-quality materials and unique coating techniques, together with innovative engineering and opto-mechanical designs, we have earned a reputation for excellent performance, durability and quality.
光学镀膜
我公司的高耐磨增透膜（AR），以及多种类型的硬碳膜（HC）拥有最高耐用性、能量传输及最小反射率。
- 物理气相沉积（PVD）– 热熔性和电子枪
- 离子辅助沉积（IAD）– 离子枪
- 等离子增强化学气相沉积（PECVD），适用于DLC镀膜
Passive Athermalized Lens Assembly
Our IR imaging lens assemblies incorporate passive athermalization of the lenses and opto-mechanical system to maintain the highest imaging performance over the full operating temperature range. We use advanced materials that enable unique athermalization properties and optomechanical designs that effectively compensate for optical variations over a wide temperature range.
IR Optics Production Site Virtual Tour
Applications
- Predictive Maintenance
- Thermal Weapon Sights and Hand Held Thermal Imagers
资源
Data Sheets
SupIR 75 mm f/1.2 Data Sheet(200.9 kB, PDF)
Drawings & CAD
680189 Interface Control Document(124.2 kB, PDF)
