MWIR Continuous Zoom Lens, SupIR, 19-275 mm FL, f/5.5, Hard Carbon
MWIR Continuous Zoom Lens, SupIR, 19-275 mm FL, f/5.5, Hard Carbon

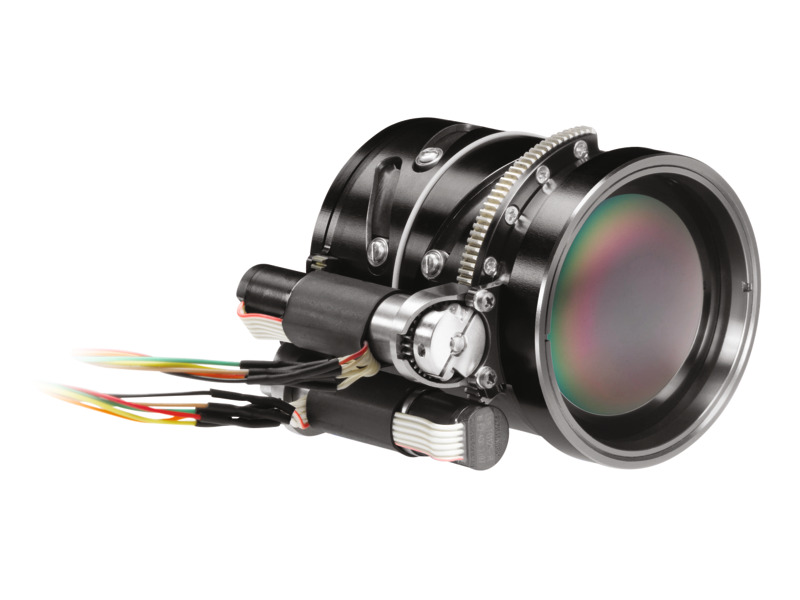

The SupIR 19-275mm f/5.5 motorized focus MWIR imaging lens (P/N 6519634) has a 19-275 mm focal length with an f-number of 5.5. This continuous zoom lens features our hard carbon antireflection coating and is designed for standard definition format cooled MWIR cameras. These lenses provide a crisp image over the full zoom range, with MTF close to the diffraction limit. Providing outstanding detection, recognition and identification (DRI) ranges, these MWIR lenses are suitable for a wide range of commercial, surveillance and homeland security applications.
Horizontal Field of View (HFOV)
WFOV (19 mm)
| Format | |||
|---|---|---|---|
| Pitch | 320x256 | 480x384 | 640x512 |
| 30 µm | 29.8° | ||
| 20 µm | 19.6° | 29.8° | |
| 15 µm | 14.6° | 22.1° | 29.8° |
NFOV (275 mm)
| Format | |||
|---|---|---|---|
| Pitch | 320x256 | 480x384 | 640x512 |
| 30 µm | 2.0° | ||
| 20 µm | 1.3° | 2.0° | |
| 15 µm | 1.0° | 1.5° | 2.0° |
