Specifications

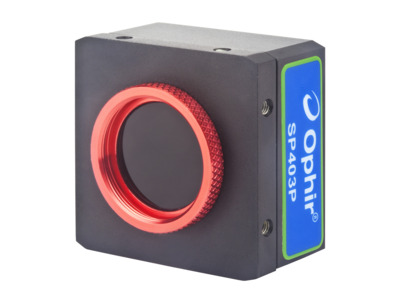

- Product NameSP403P
- Spectral Range1440-1605 nm
- Beam Size0.6 to 12.3 mm
- Communication InterfaceUSB 3.0
- Sensor TypePhosphor-Coated Silicon CMOS
- Compatible Light SourcesCW, Pulsed
- Active Area12.3 X 12.3 mm
- 4.5mm
- Elements4512 x 4512
- Effective Pixel Pitch2.74 µm
- Dynamic Range32 dB
- Full Resolution Frame RateRate 11 fps
- Saturation Intensity60mW/cm² at 1520nm
- CE ComplianceYes
- UKCA ComplianceYes
- China RoHS ComplianceYes
