Sorry, this product is no longer offered for sale.

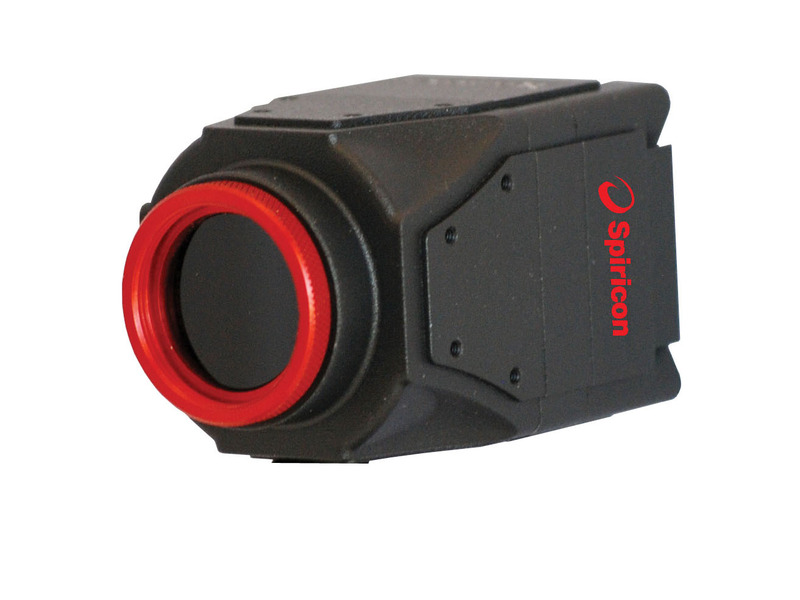

LT665 Laser Beam Profiler, 2752x2192 px, 27 fps, 190-1100 nm, USB 3.0, BeamGage Pro
LT665 Laser Beam Profiler, 2752x2192 px, 27 fps, 190-1100 nm, USB 3.0, BeamGage Pro
The BGP-USB3-LT665 camera based laser beam profiler (P/N SP90378) accurately captures and analyzes wavelengths from 190 to 1100 nm. The 2752 x 2192 element LT665 camera has a 4.54 μm pixel pitch and 27 fps frame rate with the USB 3.0 interface. It features a compact design, wide dynamic range, unparalleled signal to noise ratio, and USB interface that makes it ideal for measuring CW and pulsed laser profiles. The included BeamGage Professional software has all of the functionality that BeamGage Standard includes. BeamGage Professional supports all of our beam profiling cameras, includes window partitioning to allow analysis of multiple beams on a single camera, and includes an automation interface written in .NET to push data to your custom applications.
Specifications
- Spectral Range190-1100 nm
- Beam Size46 µm - 9.9 mm
- Sensor TypeSilicon CCD
- Compatible Light SourcesCW, Pulsed
- Active Area12.5 x 10.0 mm
- 17.5 mm
- Elements2752 x 2192
- Effective Pixel Pitch4.54 μm
- Dynamic Range54 dB
- Full Resolution Frame Rate27 fps
- Saturation Intensity14 µW/cm2
- SoftwareBeamGage Professional
- CE ComplianceYes
- UKCA ComplianceYes
- China RoHS ComplianceYes
- CommunicationUSB 3.0
Resources & Downloads
3D Product Models
Data Sheets
Large Format USB & GigE Cameras Datasheet(369 kB, PDF) BeamGage Datasheet (647.6 kB, PDF)
Drawings & CAD
LT665 Drawing(296.4 kB, PDF)
