LaserStar Dual Channel

Model: 7Z01601

$3,081

In Stock

Compare

Add to List

Product Series Overview

LaserStar Monochrome Display Laser Power & Energy Meters

LaserStar Laser Power & Energy Meter, 2 Channel, LCD Display

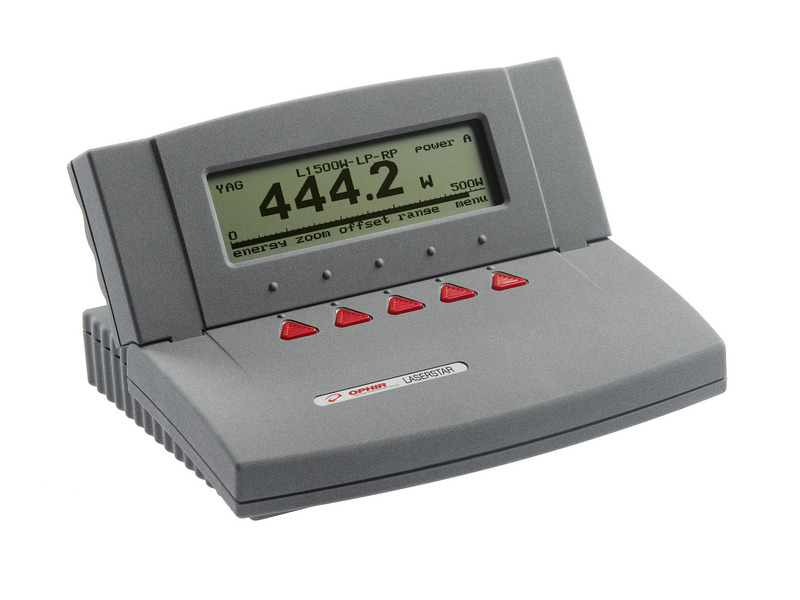

The Laser Star dual channel laser power and energy meter (P/N 7Z01601) features dual channel capabilities to enable the user to simply plug in any of Ophir's thermal, pyroelectric or photodiode sensors and measure the two channels independently, or a comparison between the two channels. Up to 10 data files (54,000 points total) can be stored for onboard review or downloading to computer even if LaserStar has been switched off. The built-in RS232 interface and StarCom PC software allow on-line processing of data or processing previously stored data. Results are displayed graphically on a PC. To support PC interfacing, LabVIEW drivers are provided.

Specifications

Technical Specs

Thermal Sensor Compatibility

Yes
Photodiode Sensor Compatibility

Yes
Pyroelectric Sensor Compatibility

Yes
BeamTrack Sensor Compatibility

No
Statistics

Yes
Analog Out

1 V
RS232

Yes
USB

No
GPIB

Yes

Trigger Input/Output

No
On-Board Data Storage

59.4k
Automation Interface

No
Labview VI's

Yes
Data Transfer Rate

RS232: 30 Hz, GPIB: 1500 Hz
CE Compliance

Yes
UKCA Compliance

Yes
China RoHS Compliance

Yes

Thermal Sensor Compatibility

Yes
Photodiode Sensor Compatibility

Yes
Pyroelectric Sensor Compatibility

Yes
BeamTrack Sensor Compatibility

No
Statistics

Yes
Analog Out

1 V
RS232

Yes
USB

No
GPIB

Yes

Trigger Input/Output

No
On-Board Data Storage

59.4k
Automation Interface

No
Labview VI's

Yes
Data Transfer Rate

RS232: 30 Hz, GPIB: 1500 Hz
CE Compliance

Yes
UKCA Compliance

Yes
China RoHS Compliance

Yes
