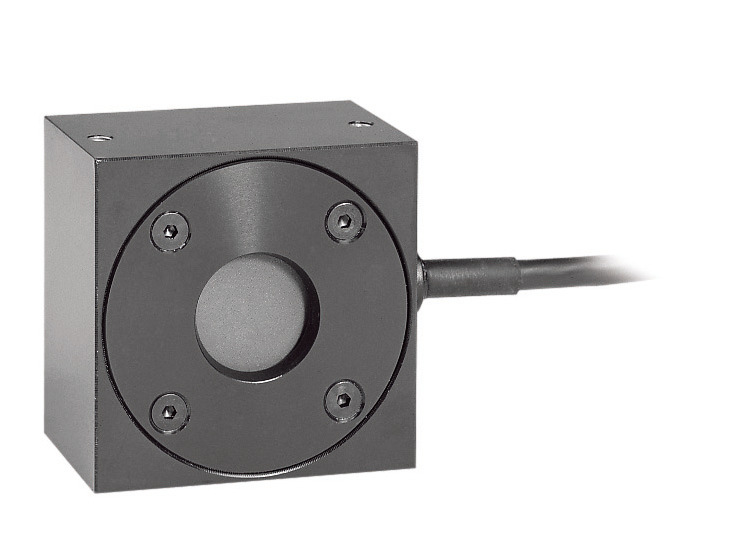

OEM Thermopile Power Sensor, 0.1-150 W, 18 mm, 0.19-20 µm, Water-Cooled
OEM Thermopile Power Sensor, 0.1-150 W, 18 mm, 0.19-20 µm, Water-Cooled
The 150W-SH OEM thermal power and energy laser sensor is water-cooled with an 18 mm aperture. It can measure laser power from 60 mW to 150 W when water cooled. It can measure energy from 20 mJ to 100 J. It has the spectrally flat broadband coating covering the spectral range from 0.19 to 20 µm.
Specifications
- Spectral Range0.19-20 µm
- Maximum Average Power150 W water cooled free standing
- Maximum Average Power Density12 kW/cm² at 150 W
- Minimum Power100 mW
- Maximum Pulse Energy100 J
- Maximum Energy Density <100 ns0.3 J/cm²
- Maximum Energy Density 2 ms10 J/cm²
- Minimum Pulse Energy50 mJ
- Response Time1.2 s
- Aperture SizeØ18 mm
- Dimensions51 x 51 x 33 mm (LxWxD)
- CE ComplianceYes
- UKCA ComplianceYes
- China RoHS ComplianceYes
Resources & Downloads
Drawings & CAD
150W-SH Drawing(73.9 kB, PDF)
