Sorry, this product is no longer offered for sale.

LWIR 1-FOV Fixed Lens, SupIR, 1.8 mm Focal Length, f/1.43, Hard Carbon

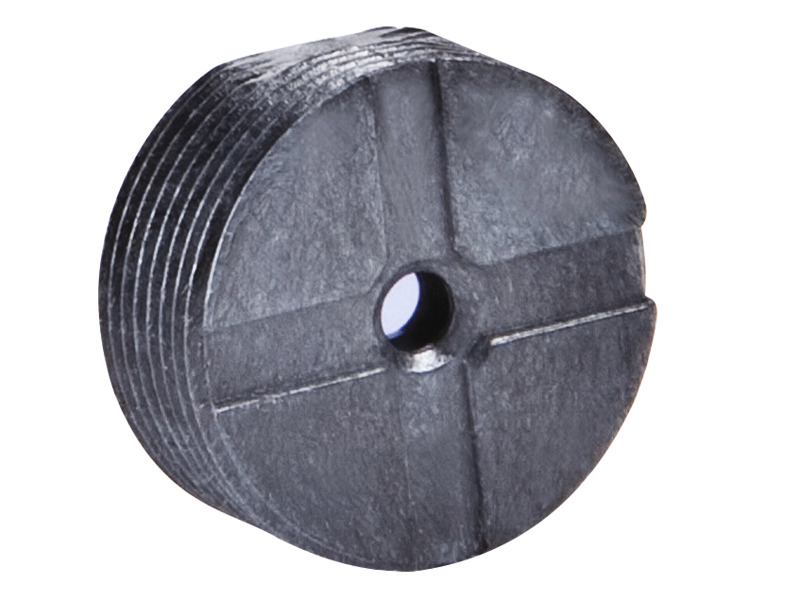

SupIR 1.8 mm f/1.43 Fixed 1-FOV LWIR Imaging Lens

LWIR 1-FOV Fixed Lens, SupIR, 1.8 mm Focal Length, f/1.43, Hard Carbon

The SupIR 1.8mm f/1.35 fixed focus LWIR imaging lens (P/N 680330-002) has a 1.8 mm focal length with an f-number of 1.35. This single field of view lens (1-FOV) features our hard carbon antireflection coating and is designed for standard definition format uncooled LWIR cameras.

Horizontal Field of View (HFOV)

	Format
Pitch	160x120
12 µm	60.5°

Specifications

Technical Specs

Type
Single Field of View
Focal Length
1.8 mm
F/#
1.43
Coating Type
Hard Carbon
Spectral Range
8-12 μm
Avg.Trns.
91%
Back Focal Length
1.78 mm in air
Focus Mechanism
Fixed
Focus Range
0.1 m to infinity
Depth of Field
0.2 m to infinity

Weight
1 g
Dimensions
Ø4 x 10 mm
Operating Temperature Range
-40 to +80°C
Storage Temperature Range
-54 to +85°C
Sealing
Not sealed
HD Format
No
Wavelength Region
LWIR

Type
Single Field of View
Focal Length
1.8 mm
F/#
1.43
Coating Type
Hard Carbon
Spectral Range
8-12 μm
Avg.Trns.
91%
Back Focal Length
1.78 mm in air
Focus Mechanism
Fixed
Focus Range
0.1 m to infinity
Depth of Field
0.2 m to infinity

Weight
1 g
Dimensions
Ø4 x 10 mm
Operating Temperature Range
-40 to +80°C
Storage Temperature Range
-54 to +85°C
Sealing
Not sealed
HD Format
No
Wavelength Region
LWIR
