7Z02779
FL600A-LP2-65

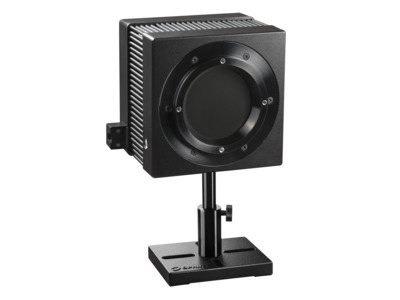

Thermal Laser Power Sensor, LP2 Type, 5-600 W, Ø65 mm, 350-2200 nm
$3,269

Specifications

  • Product Name
    FL600A-LP2-65
  • Absorber Type
    LP2 - Long pulse and CW high damage threshold
  • Aperture Size
    Ø65 mm
  • Spectral Range
    350 to 2200 nm
  • Minimum Power
    5W
  • Maximum Average Power
    600 W
  • Minimum Pulse Energy
    600 mJ
  • Maximum Pulse Energy
    600 J
  • Response Time
    4 s
  • Maximum Average Power Density
    11 kW/cm²
  • Maximum Energy Density <100 ns
    0.1 J/cm²
  • Maximum Energy Density 2 ms
    130 J/cm²
  • Cooling
    Fan
  • Dimensions
    128 x 128 x 116 mm (LxWxD)
  • Cable Length
    1.5 m
  • CE Compliance
    Yes
  • UKCA Compliance
    Yes
  • China RoHS Compliance
    Yes

Features

LP2 Sensors Coating With Very High Damage Threshold and Very Low Reflection

Even higher damage threshold…flat spectral response…absorption up to 96%... These are some of the characteristics of the new “LP2” type laser power sensors from Ophir.

Measuring Very High Power Laser Beams

Laser beams with powers of many tens of Kilowatts are becoming more and more common in today's applications, industrial as well as research. This video will discuss the technical challenges in measuring such lasers, and will show you a range of solutions now available from Ophir for measuring up to 100KW -- safely, and accurately.

Choosing a Thermal Sensor

In this short “Basics” video we review the use – and selection - of thermal sensors for measuring low, medium and high laser powers.

Sensors for Measuring Laser Power

In this short "Basics" video we review in general how one goes about measuring laser beam power, so that you'll have a clear understanding of what the different sensor types are, and when to use each type.

Thermal Power Sensor Accuracy

Ophir former CTO Dr. Ephraim Greenfield discusses the various factors that contribute to uncertainties in measurement when using Ophir laser power and energy meters.

Effects of Incidence Angle on Measurements

In this video, you will learn to what degree a beam’s incidence angle matters, and for which sensor types this should be taken into account.

Thermal Sensor Calibration

As the spectral sensitivity of the absorber used for the power and energy measurement is not fully linear, Ophir sensors get a high precision calibration by default with more than one wavelength.

Each thermal sensor is calibrated independently of a particular Ophir power meter with its calibration information contained in the DB15 plug. When the sensor is connected to the meter, the meter reads and interprets this information to display a calibrated reading. Each power meter is calibrated independently and has the same sensitivity as an other meter within about 2 tenths of a percent.

Unless otherwise indicated, Ophir sensors and meters should be recalibrated within 18 months after initial purchase, and then once a year after that.

Absorption of different thermal sensor absorber types
