OEM Thermopile Power Sensor, 5-600 W, 26 mm, 350-2200 nm, Water-Coooled, Ethernet
OEM Thermopile Power Sensor, 5-600 W, 26 mm, 350-2200 nm, Water-Coooled, Ethernet

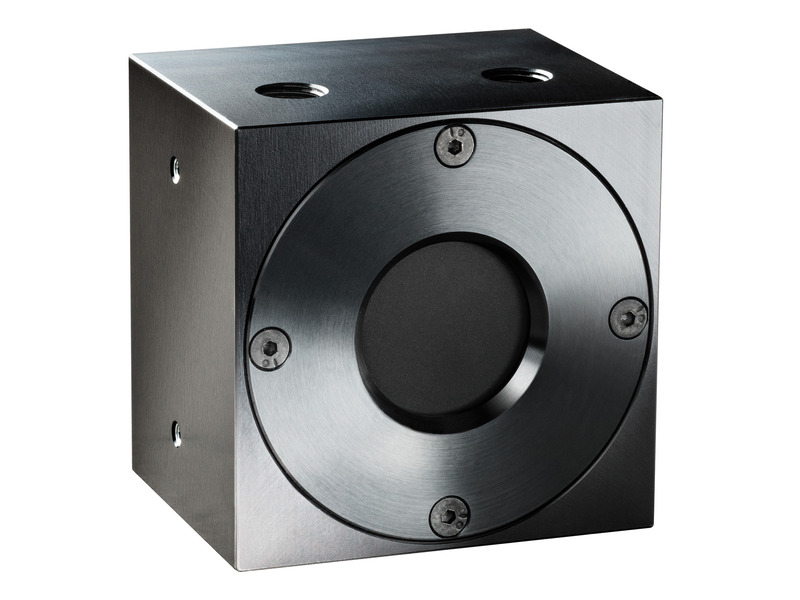

The 600W-UAE OEM thermal power and energy sensor is water-cooled with an 26 mm aperture. It can measure laser power from 5 to 600 W. It can measure energy from 500 mJ to 300 J. Its high damage threshold LP2 absorber covers the spectral range from 350-2200 nm. It has Ethernet output.
Spezifikationen
Spectral Range
350-2200 nm
Maximum Average Power
600 W water cooled free standing
Maximum Average Power Density
11 kW/cm² at 600 W
Minimum Power
5 W
Maximum Pulse Energy
300 J
Maximum Energy Density <100 ns
0.1 J/cm²
Maximum Energy Density 2 ms
130 J/cm²
Minimum Pulse Energy
500 mJ
Response Time
2.5 s
Communication
Ethernet
Aperture Size
Ø26 mm
Dimensions
65 x 65 x 49 mm (LxWxD)
RoHS Compliance
Yes
China RoHS Compliance
Yes
