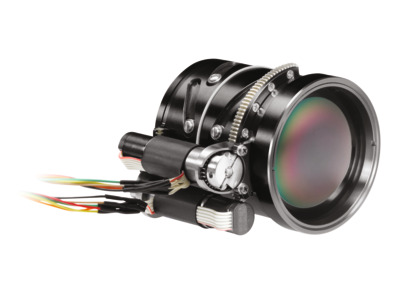

The SupIR 19-275mm f/5.5 motorized focus MWIR imaging zoom lens has a 19 to 275 mm focal length with an f-number of 5.5. This continuous zoom lens is compatible with 640x512 format cooled MWIR cameras.

Advanced technologies for the highest performance mid-wave focal planes
High-durability and hard-carbon 3.4-5 µm wavelength AR coatings
Passive athermalization with the highest imaging performance from -32 to +75°C
Optimized for 15 µm pixel pitch 640x512 cooled MWIR cameras
Vehicle detection range exceeding 14.5 km
Requires export license

See All Features

Products

		Compare	Model	Compatibility	sortOrder	rankScore	ranking	Drawings, CAD & Specs		Coating Type	Avg.Trns.	Availability	Featured Item	Price		Brand
		6519608 SupIR 19-275mm f/5.5 MWIR Continuous Zoom Lens, SupIR, 19-275 mm FL, f/5.5, High Durability Contact Us	6519608 SupIR 19-275mm f/5.5 MWIR Continuous Zoom Lens, SupIR, 19-275 mm FL, f/5.5, High Durability	UNIVERSAL	0.0	1.0	0.0		0.0	High Durability	87%	Contact Us				Ophir
		6519634 SupIR 19-275mm f/5.5 MWIR Continuous Zoom Lens, SupIR, 19-275 mm FL, f/5.5, Hard Carbon Contact Us	6519634 SupIR 19-275mm f/5.5 MWIR Continuous Zoom Lens, SupIR, 19-275 mm FL, f/5.5, Hard Carbon	UNIVERSAL	0.0	1.0	0.0		0.0	Hard Carbon	81%	Contact Us

Show All

HFOV [deg]

WFOV (19 mm)

	Format
Pitch	640x512
15 µm	29.8°

NFOV (275 mm)

	Format
Pitch	640x512
15 µm	2.0°

HFOV [deg]

WFOV (19 mm)

	Format
Pitch	640x512
15 µm	29.8°

NFOV (275 mm)

	Format
Pitch	640x512
15 µm	2.0°

Specifications

Type

Continuous Zoom
Focal Length

19 to 275 mm
F/#

5.5
Spectral Range

3.4 to 5.0 µm
Cold Stop FPA Distance

19.7 mm
Cold Stop Clear Aperture

Ø3.56 mm
Back Focal Length

24.7 mm in air (Assuming 1.5 mm Ge Window & Filter)
Minimum Focus Range

5 m Wide, 50 m Narrow
Nuc (by defocus)

Yes
Focus Mechanism

Motorized
Focus Time

≤8 s
Zoom Mechanism

Motorized

Zoom Time

≤5 s
Through-zoom Boresight

Within a radius of 0.15 mm at the focal plane
Weight

445 g
Dimensions

Ø63.5 mm x 74.3 mm
Drive Voltage

12 VDC
Current Consumption

0.2 A average, 1.0 A peak
Communication Interface

RS422
Operating Temperature Range

-32°C to +65°C
Storage Temperature Range

-40°C to +71°C
Sealing

IP 67 front element only
Wavelength Region

MWIR

Specifications

Type

Continuous Zoom
Focal Length

19 to 275 mm
F/#

5.5
Spectral Range

3.4 to 5.0 µm
Cold Stop FPA Distance

19.7 mm
Cold Stop Clear Aperture

Ø3.56 mm
Back Focal Length

24.7 mm in air (Assuming 1.5 mm Ge Window & Filter)
Minimum Focus Range

5 m Wide, 50 m Narrow
Nuc (by defocus)

Yes
Focus Mechanism

Motorized
Focus Time

≤8 s
Zoom Mechanism

Motorized

Zoom Time

≤5 s
Through-zoom Boresight

Within a radius of 0.15 mm at the focal plane
Weight

445 g
Dimensions

Ø63.5 mm x 74.3 mm
Drive Voltage

12 VDC
Current Consumption

0.2 A average, 1.0 A peak
Communication Interface

RS422
Operating Temperature Range

-32°C to +65°C
Storage Temperature Range

-40°C to +71°C
Sealing

IP 67 front element only
Wavelength Region

MWIR

Features

Your Long Range Distance Needs Met

High Performance Mid-Wave Focal Plane

Using advanced technologies, top-quality materials and unique coating techniques, together with innovative engineering and opto-mechanical designs, we have earned a reputation for excellent performance, durability and quality.

High-durability and Hard-carbon AR Coatings

Our highly abrasion-resistant, anti-reflective advanced optical coatings include several types of Hard Carbon coatings which provide maximum durability, energy transmission & minimal reflection. Our innovative coating technologies include:

Physical Vapor Deposition (PVD) – Thermal heating and electron gun
Ion Assisted Deposition (IAD) – Ion gun
Plasma Enhanced Chemical Vapor Deposition (PECVD) for DLC coatings

Passive Athermalized Lens Assembly

Our IR imaging lens assemblies incorporate passive athermalization of the lenses and opto-mechanical system to maintain the highest imaging performance over the full operating temperature range. We use advanced materials that enable unique athermalization properties and optomechanical designs that effectively compensate for optical variations over a wide temperature range.
