Laser Focal Spot Analyzer, 950-1800 nm, BeamGage Standard

BGS-LBS-300s-NIR-CAL-LT665

Model: SP90479

Show

Compare

Add to List

Product Series Overview

Laser Focus Spot Analyzer Beam Profilers

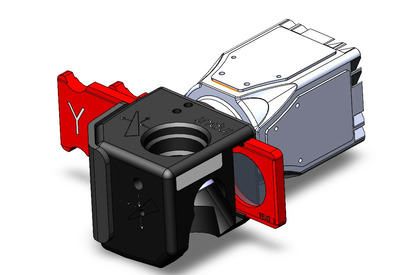

Laser Focal Spot Analyzer, 950-1800 nm, BeamGage Standard

The BGS-LBS-300s-NIR-CAL-LT665 focal spot analyzer (P/N SP90479) measures laser beam power distribution and focal spot size for wavelengths from 950 to 1800 nm. The average power can be from <1 to 400 Watts and the focal spot can be as small as 37 µm. The FSA can also be used to measure how the focal spot shifts with power during its critical start-up phase. BeamGage Standard software is included.

Specifications

Technical Specs

Spectral Range

950-1800 nm
Beam Size

37 µm - 5.3 mm
Communication

USB 3.0
Sensor Type

Silicon CCD
Compatible Light Sources

CW, Pulsed
Active Area

5.3 x 7.1 mm
Elements

1928 x 1448
Effective Pixel Pitch

3.69 µm

Dynamic Range

56 dB
Full Resolution Frame Rate

13 fps
Software

BeamGage Standard
CE Compliance

Yes
UKCA Compliance

Yes
China RoHS Compliance

Yes

Spectral Range

950-1800 nm
Beam Size

37 µm - 5.3 mm
Communication

USB 3.0
Sensor Type

Silicon CCD
Compatible Light Sources

CW, Pulsed
Active Area

5.3 x 7.1 mm
Elements

1928 x 1448
Effective Pixel Pitch

3.69 µm

Dynamic Range

56 dB
Full Resolution Frame Rate

13 fps
Software

BeamGage Standard
CE Compliance

Yes
UKCA Compliance

Yes
China RoHS Compliance

Yes

Resources & Downloads

Data Sheets

Focal Spot Analyzer Datasheet (238.2 kB, PDF)

Drawings & CAD

LBS-300s-CAL Drawing (432.3 kB, PDF)
