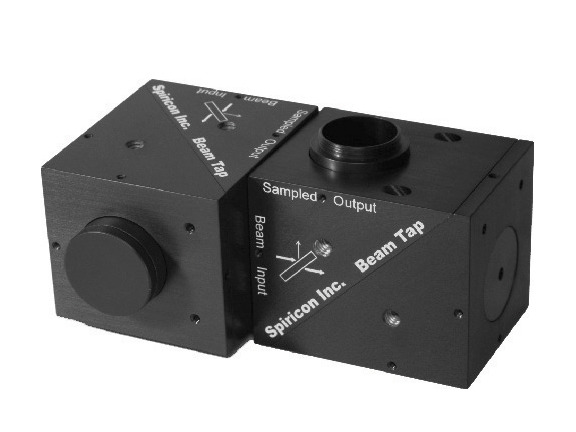

Beam Tap Beam Sampling System, Dual Surface, 2 BK7 Cubes, 1064 nm

BT-II-YAG

Model: SP90172

$1,878

Show

Compare

Add to List

Product Series Overview

Beam Tap I & II Dual Surface Reflectors

Beam Tap Beam Sampling System, Dual Surface, 2 BK7 Cubes, 1064 nm

The SP90172 Beam Tap beam sampling system is a dual surface laser beam sampler with two BK7 cubes for 1064 nm. The rear surface is AR coated to maximize the throughput of the main beam.

Specifications

Technical Specs

Spectral Range

1064 nm
Reflection

0.0025% Ravg
Damage Threshold

1 MW/cm² CW, 1 MJ/cm² pulsed
Material

BK7

Clear Aperture

Ø20 mm
Interface

C-mount

Spectral Range

1064 nm
Reflection

0.0025% Ravg
Damage Threshold

1 MW/cm² CW, 1 MJ/cm² pulsed
Material

BK7

Clear Aperture

Ø20 mm
Interface

C-mount

Resources & Downloads

Data Sheets

Beam Tap I & ll Datasheet (247.9 kB, PDF)

Drawings & CAD

Beam Tap Drawing (259.9 kB, PDF)
